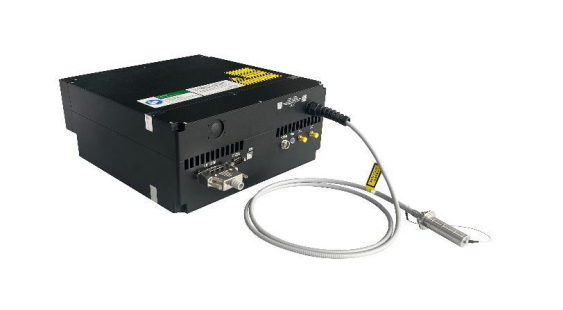

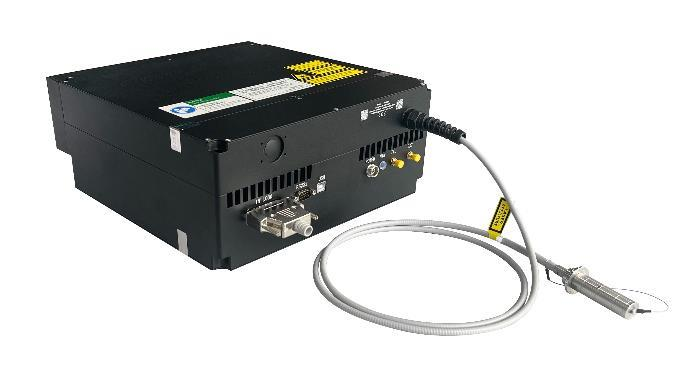

YSL Photonics' SC-OEM is the latest product designed with the compact footprint for the demanding medical and industry application. The SC-OEM, with single-mode fiber output, delivers a wide spectral output ranging from 430nm to 2400nm with up to 10W total power. The SC-OEM not only maintains the traditional supercontinuum light source excellent performance, but also sets aside DB25, RS232, NIM trigger, Pulse on Demand (POD) and many other control interfaces. The wide spectrum combined with laser beam quality makes it an ideal source for replacing traditional broadband source like lamp, LED, SLED or any number of laser lines in the system.
Models and options:
SC-OEM
• Average Power：>10W
• Wavelength：430nm-2400nm
• Pulse Duration：~100ps
• Repetition Rate：10kHz-200MHz
SC-OEM-M
• Average Power：>7W@80MHz
• Wavelength：410nm-2400nm
• Pulse Duration：~6ps
• Repetition Rate：10kHz-80MHz
SC-OEM-HP
• Average Power：>7W
• Wavelength：430nm-2400nm
• Pulse Duration：1/2/4/8ns Optional
• Repetition Rate：100kHz-2MHz adjustable
Features:
• Wavelength：410nm-2400nm
• Repetition Rate：10kHz-200MHz
• Multiple control interfaces
• Beam quality：M2<1.1
• Size：317mm*300mm*127mm
Applications:
• Semiconductor Inspection & Metrology
• Industrial Sorting/ Machine Vision
• Medical Instrumentation
• Flow Cytometry
• Optical Coherence Tomography
Data Sheet：
