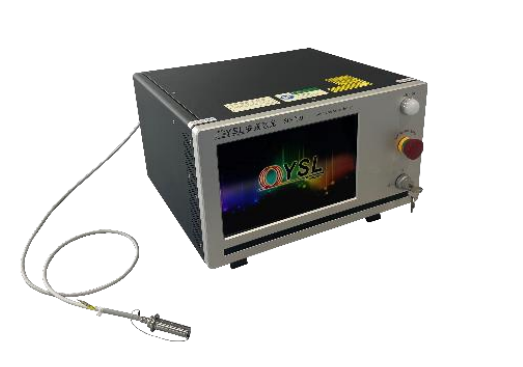

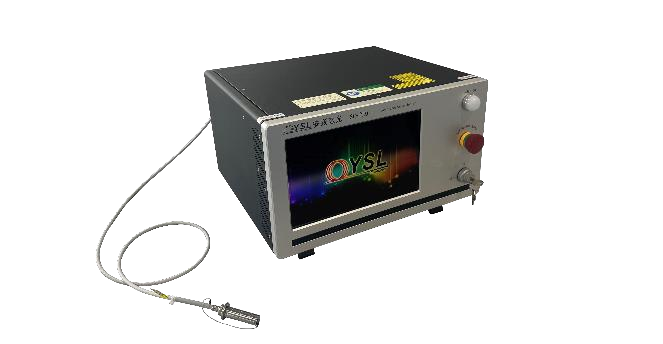

YSL Photonics’SC-Pro is the latest high power supercontinuum source with variable repetition rate from 10kHz to 200MHz. It delivers a wide spectral output ranging from 400nm to 2400nm with 8W total power (10-20W optional). It has the unique feature of 1MHz-80MHz external triggerable range which could be very useful for locking to the mode-locked laser for pump-probe application. SC-Pro offers >1µJ pulse energy (@1MHz), making it the ideal source for super resolution microscopy. The 10kHz to 200MHz repetition rate capability makes it an ideal source for the applications such as low noise OCT, fluorescence microscopy, nanophotonics and etc.


Applications:

● OCT

● Fluorescence Spectroscopy and Microscopy

● Nanophotonics

● Super-Resolution Imaging

● Photocurrent microscopy

● Photoacoustic Microscopy


Features:

● Total power: >8W (10-20W Optional)

● Internal Repetition Rate: 0.1-200MHz

● External Triggerable: 1-80MHz

● Wavelength: 400nm-2400nm

● Pulse Energy: >1uJ

● Single-Mode Output

● NIM trigger signal output, externally triggerable


Data Sheet:

SC-PRO 8W EN.pdf
