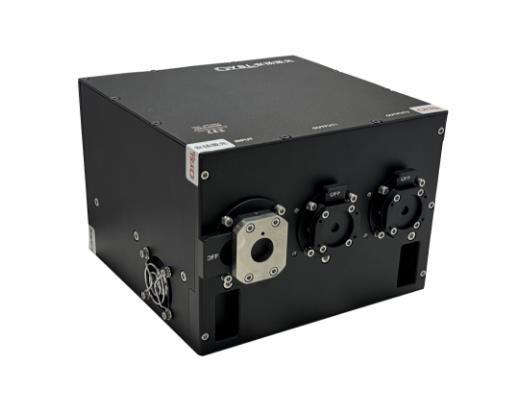

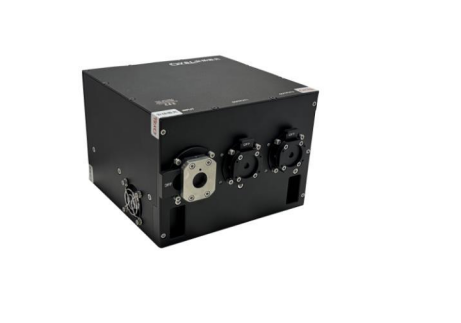

YSL Photonics' AOTF system is a simply plug and play module with any of the YSL supercontinuum system. For each integrated AOTF crystal, the system enables up to 8 simultaneous tunable wavelength channels. Combines of three different crystals, the AOTF module covers the entire supercontinuum spectrum from 400nm to 2000nm. The AOTF module can be equipped with either one or two of the AOTF crystal, according to customers' demand. The AOTF offers a free-space collimated beam as standard optical output. As an alternative, a single-mode fiber delivered output is also available.
Models and options:
AOTF
400nm-2000nm filter range
AOTF-PRO-D
430nm-1450nm filter range
AOTF-VIS(Narrow Linewidth）
430nm-900nm filter range
AOTF-NIR(Narrow Linewidth）
900nm-1700nm filter range
Features：
• Simultaneous 8 channels output
• Linear polarized output
• Easy plug & play
• User friendly GUI
• Size：190mm*185mm*138mm
Applications：
• High resolution microscopy
• Fluorescence microscopy
• Nanophotonics
• Replace for several single wavelength laser
• Material characterization
Data sheet：
