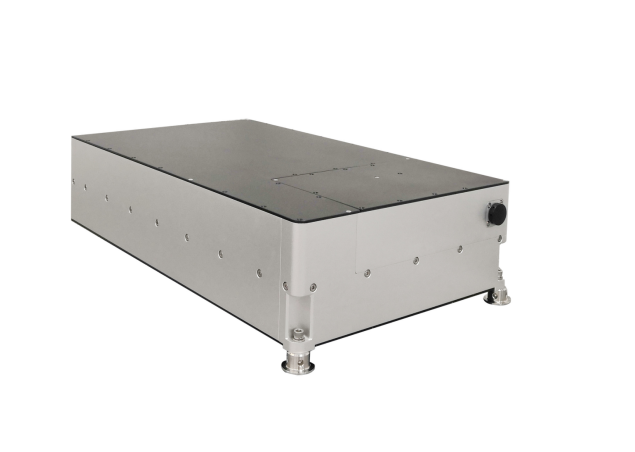

PicoYL-Green-50 has a pulse duration of 800ps,repetition rates from 300kHz up to 2.5MHz and 50W average power. The short pulse duration, high repetition rates combined with 50kW peak power open a variety of micromachining application such as PERC solar cell dicing, glass drilling, sapphire drilling, Li-lon battery foil cutting, resistor trimming and marking of transparent material. The laser is completely controlled via an industry standard digital interface with optional DB25 or RS-232.
Features：
• Central wavelength: 515nm
• Average power: 50W
• Pulse duration: 800ps
• Peak power: 50kW
• Repetition Rate: 300kHz-2.5MHz
• Pulse energy: 40μJ
Applications：
• PERC solar cell film stripping
• FPC/PCB cutting
• Plastic marking
• Lithium battery cutting
• Silicone ablating
• Scribing
Data sheet:
