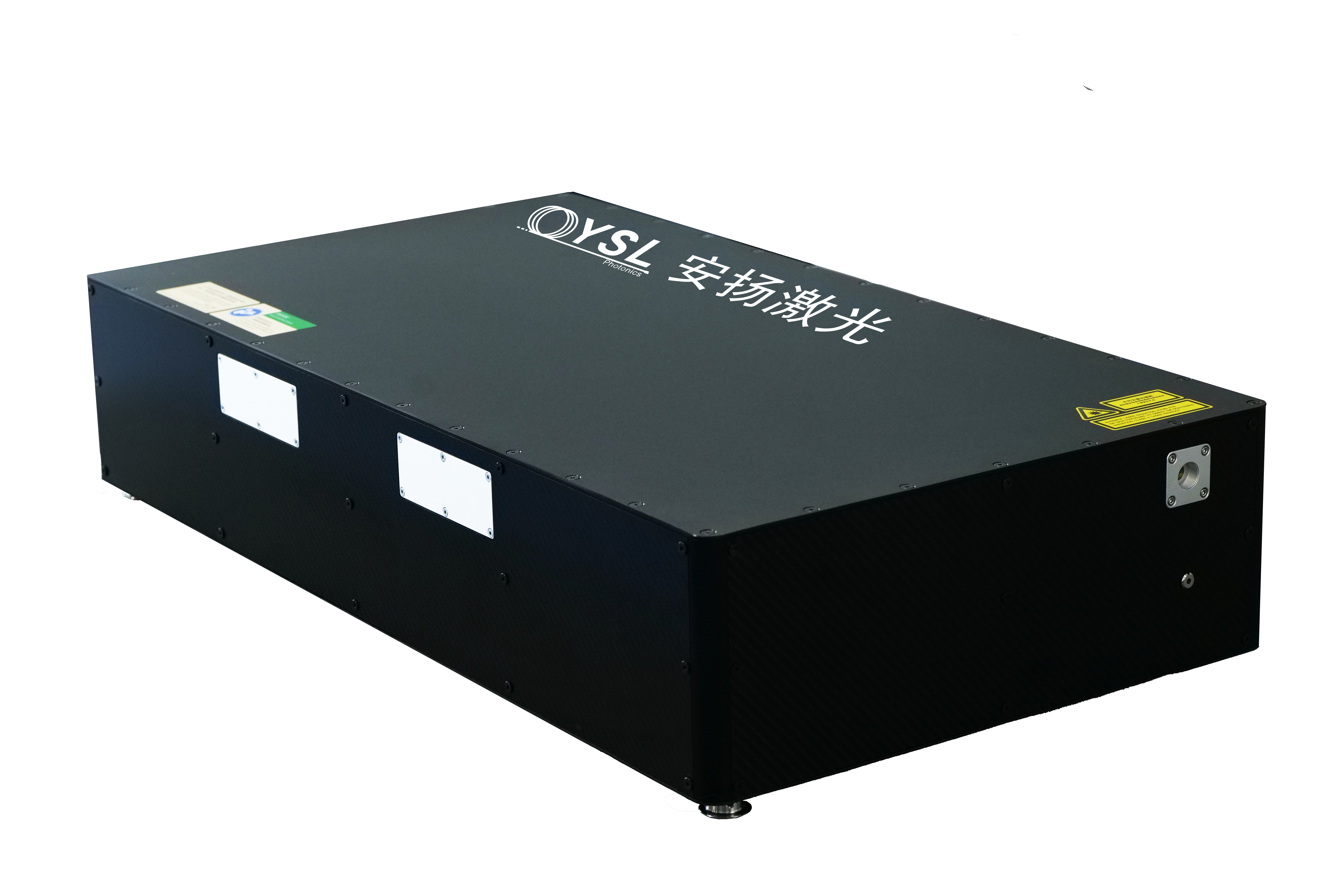

FemtoYL-50-300 is the latest industry femtosecond laser that based on fiber CPA technology. FemtoYL-50-300 has a 300fs variable pulse duration in the wavelength of 1030nm and a high average power up to 50W. Its pulse energy can up to 300μJ with a repetition rate of 1Hz-5MHz and an excellent beam pattern. FemtoYL-50-300 can provide stable 24*7 operation with a convenient maintenance, it is the best solution for operation of disply screen and the semiconductor industry.
Models and options:
FemtoYL-50-300
• Average Power: ~50W
• Wavelength: ~1030nm
• Pulse Duration: ~300fs-6ps可调
• Pulse Energy: 300μJ
FemtoYL-Green-20
• Average Power: ~20W
• Wavelength: ~515nmv
• Pulse Duration: ~300fs
• Pulse Energy: 120μJ
FemtoYL-UV-15
• Average Power: ~15W
• Wavelength: ~343nm
• Pulse Duration: ~300fs
• Pulse Energy: 60μJ
Features:
• Average Power: ~50W@IR；20W@SHG；15W@UV
• Pulse Duration: ~300fs (200fs Optional)
• Peak Power: ~500MW@IR
• 1Hz-5MHz adjusatble
• PSO/POD function
• Supports 20W green & 15W UV module integration
• Size: 850mm*450mm* 187.5 mm
• Water Cooling
Applications:
• OLED module cutting
• 5G circuit material cutting (LCP/MPI)
• FPC material cutting/drilling
• ITO drilling/scribing
• Semiconductor cutting/scribing
• Glass,sapphire drilling/scribing
Data sheet:
