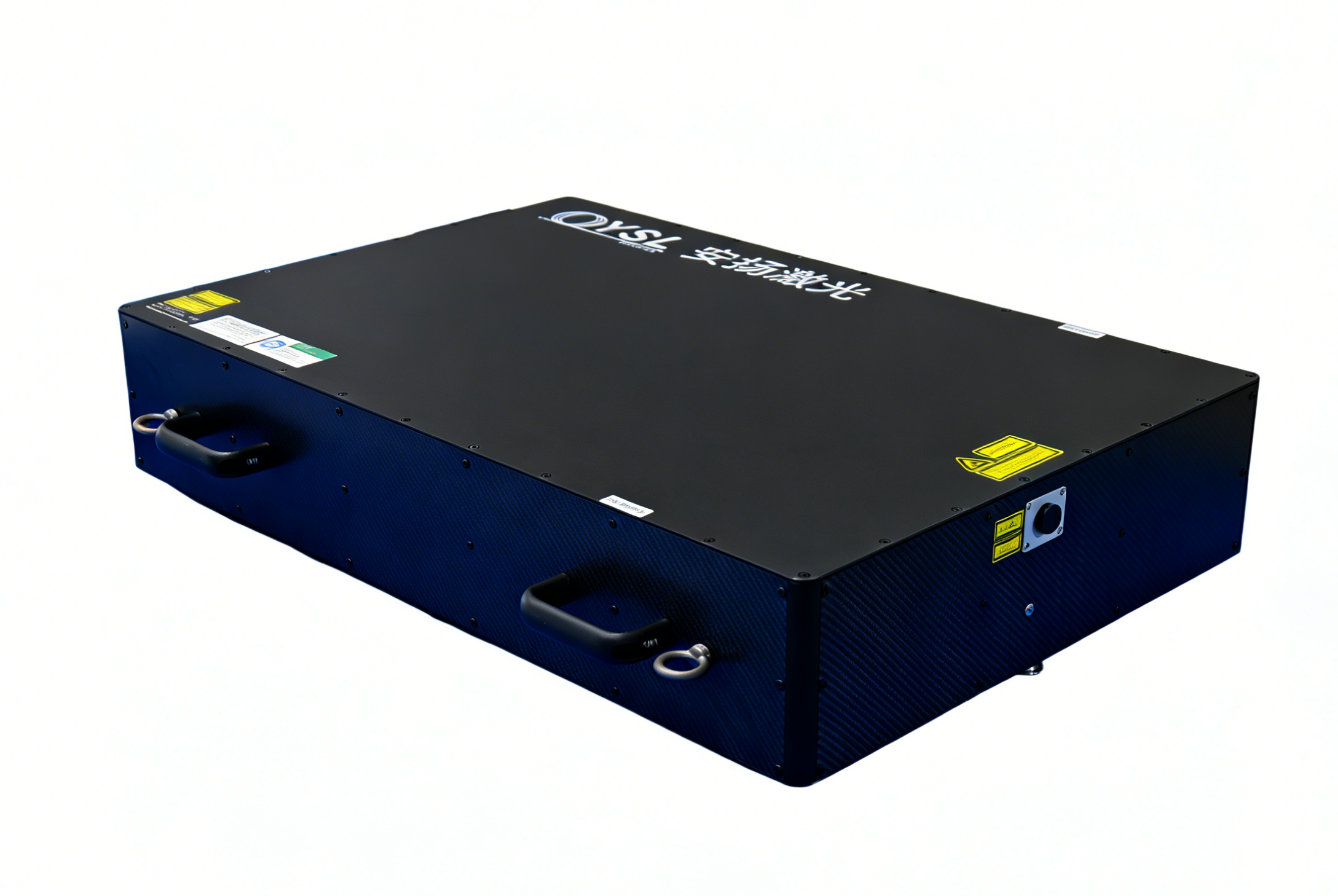

YSL Photonics' FemtoYL-IR-100 is the latest 100W high power femtosecond fiber laser. It can deliver a ~300fs variable pulse width and 300μJ pulse power, making it an ideal laser for micromachining application.
Models and options:
FemtoYL-IR-100
• Average Power：>100W
• Wavelength：~1030nm
• Pulse Duration：~300fs adjusatble
• Pulse Energy：300μJ
FemtoYL-Green-50
• Average Power：~50W
• Wavelength：~515nm
• Pulse Duration：~300fs
• Pulse Energy：100μJ
FemtoYL-UV-30
• Average Power：~30W
• Wavelength：~343nm
• Pulse Duration：~300fs
• Pulse Energy：35μJ
Features:
• Average Power：~100W@IR；50W@SHG；30W@UV
• Pulse Duration：~300fs (200fs Optional)
• Peak Power：~1GW@IR
• 1Hz-5MHz adjusatble
• PSO/POD function
• Supports 50W green & 30W UV module integration
• Size ：900mm*600mm*187.2 mm
• Water Cooling
Applications:
• OLED Dicing
• Micromachining
• Sapphire Drilling
• Silicon Dicing
• SiC Dicing
• Metal Cutting and Drilling
• FPC Cutting
