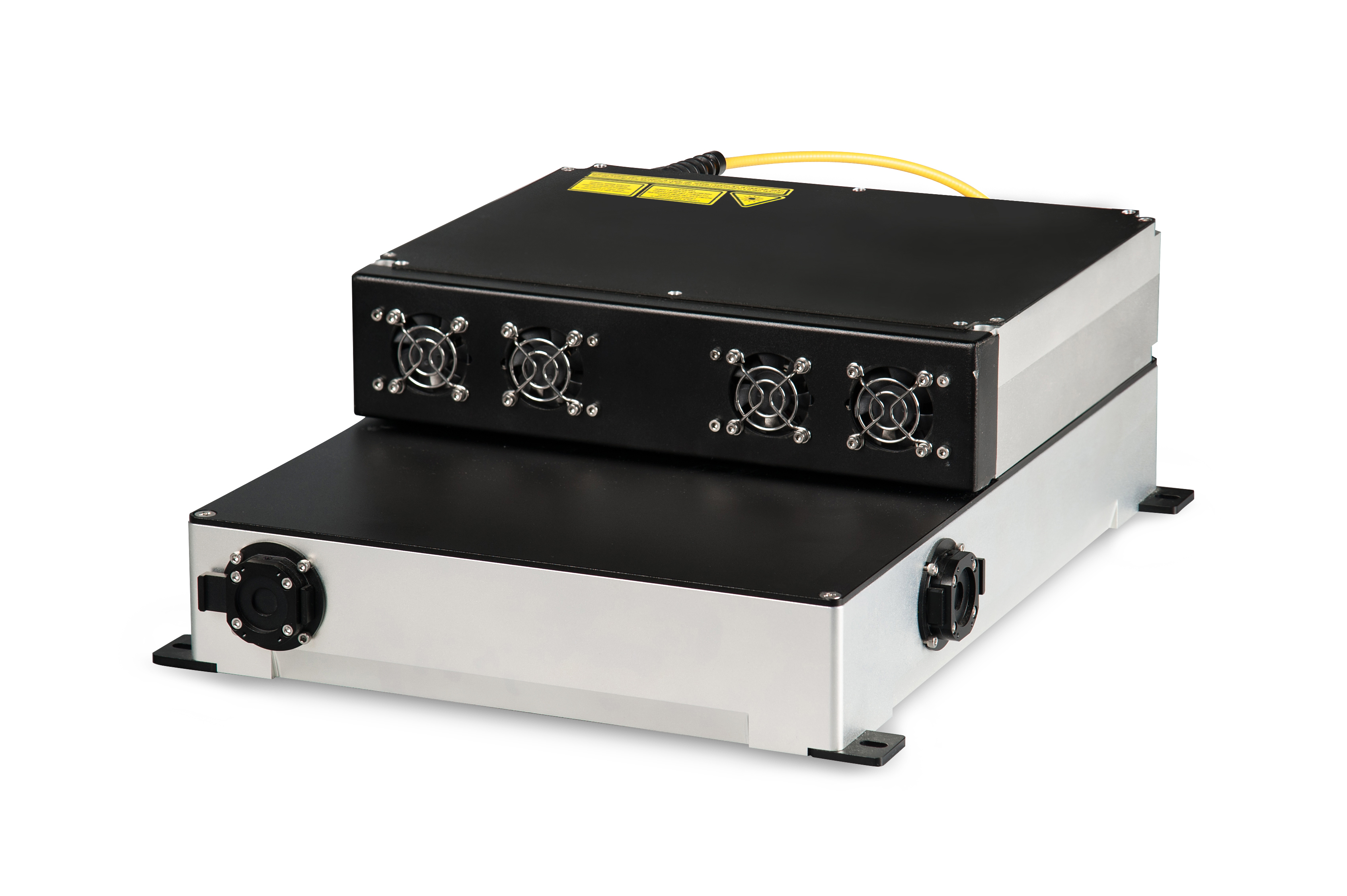

YSL Photonics’PicoYL-20 has a continuously tunable pulse duration from 200ps to 2ns and repetition rates from 30 kHz up to 1 MHz. The short pulse duration, high repetition rates combined with over 150kW peak power give high speed, permanent black/color marking on a variety of metals, thin film coating and thermal sensitive materials. The single mode beam quality picosecond pulses with over 150kW peak power open up a variety of micromachining applications such as SiC/Silicon cutting, resistor trimming and marking of transparent material. The laser is completely controlled via an industry standard digital interface with optional DB25 or RS-232.


Applications:

● Silicon or SiC Dicing

● LED Sapphire Substrate Dicing

● Lion Ion Battery Foil Cutting

● Thin Film Solar Cell Scribing

● Metal Marking

● Chrome Vanadium Texturing

● Micromaching of Transparent materials


Features:

● Average Power ~20W

● Pulse Duration 200ps-2ns

● Peak Power 150kW

● Repetition Rate 30kHz-1000kHz

● Pulse Energy 100μJ@2ns or 30uJ@200ps

● M²<1.3

● Burst Mode Function



Data Sheet:

PicoYL-20 EN.pdf
