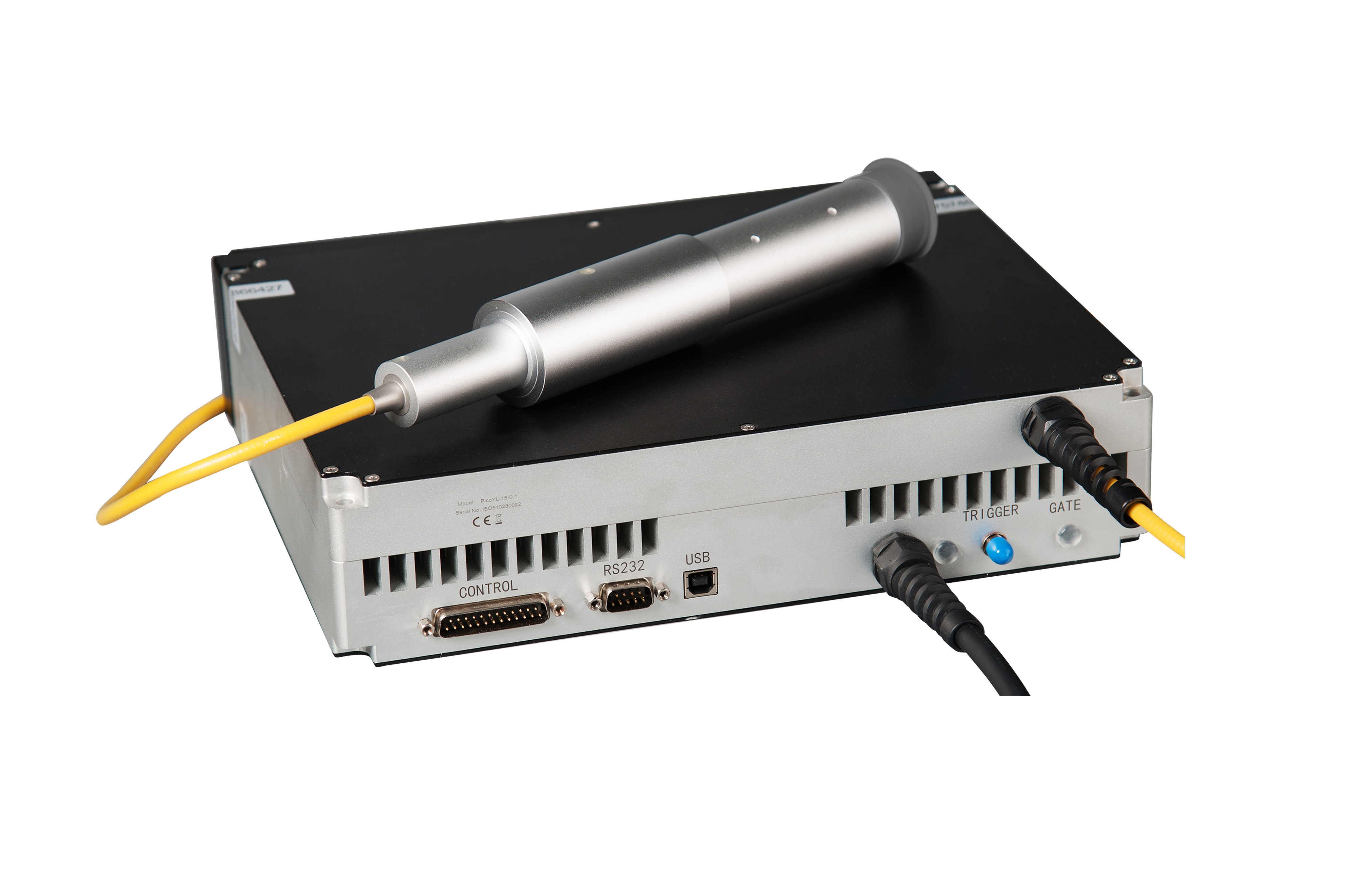

YSL Photonics’PicoYL-15 has a continuously tunable pulse duration from 100 ps to 4 ns and repetition rates from 100 kHz up to 5MHz. The short pulse duration, high repetition rates combined with over 50kW peak power give high speed, permanent black/color marking on a variety of metals, thin film coating and thermal sensitive materials. The single mode beam quality picosecond pulses with over 50kW peak power open up a variety of micromachining applications such as Li-Ion battery foil cutting, resistor trimming and marking of transparent material. The laser is completely controlled via an industry standard digital interface with optional DB25 or RS-232.


Applications:

● Black Marking

● Lion Ion Battery Foil Cutting

● Thin Film Solar Cell Scribing

● Silicon or SiC Dicing

● Resister Trimming

● Chrome Vanadium Texturing

● Micromaching of Transparent materials


Features:

● Average Power 15W

● Pulse Duration 100ps-4ns adjustable

● Peak Power 50kW

● Repetition Rate 100kHz-5MHz

● Pulse Energy 150μJ@4ns or 30uJ@600ps

● M²<1.3

● Burst Mode Function


Data Sheet:

PicoYL-15 EN.pdf
